Stella coat
"Thicker Layers" Newly Released!
Thicker layers is effective against erosion.
Core pin manufacturer and surface treatment professionals have jointly developed coating for core pins
Supernova ”Stella” composed of five elements
Features of Stella Coat
-AlCrTiSiN-based nano composite multilayer coating
-3-layer coating
Evaluation of the coating

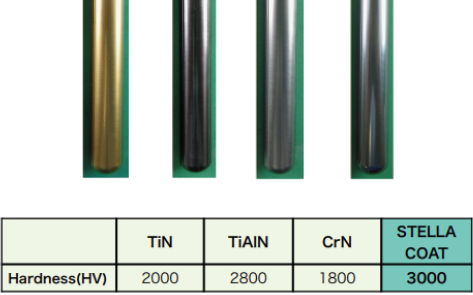

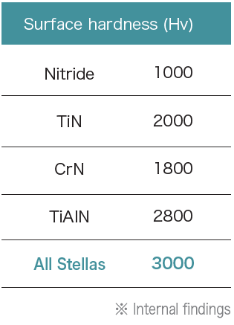

-Harder film than TiN, TiAlN, and CrN (Hv3000)
-Excellent resistance to aluminum sticking / erosion
-Excellent oxidation resistance (1100℃)
-Little dimensional change

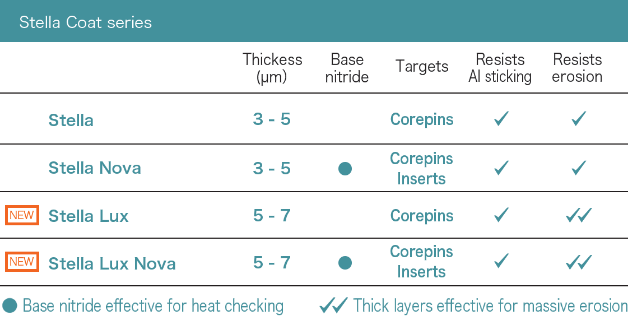

Series comparison table

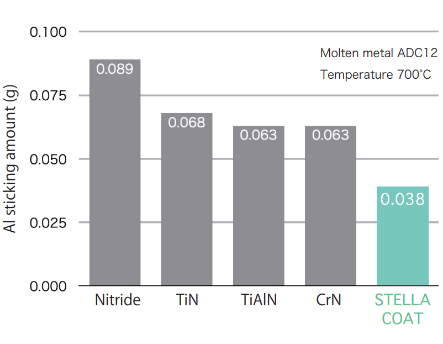

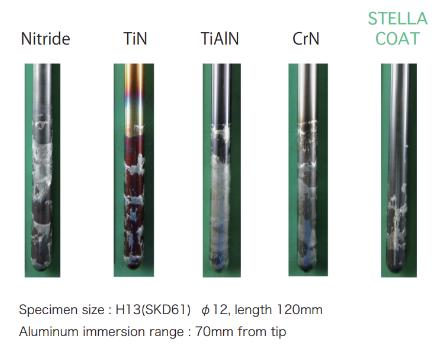

Al sticking test results

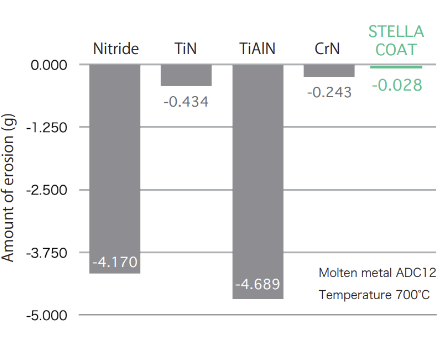

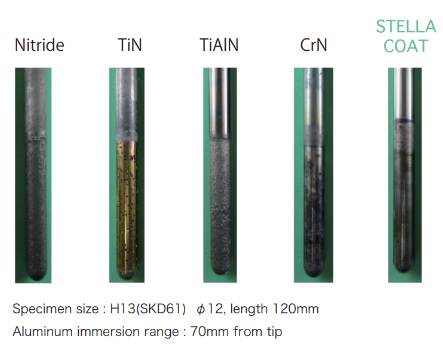

Erosion test results
Case study
Feedback from users
“Al sticking reduced and shot life extended.”
“The number of die maintenance has been significantly reduced”
Case study
Case study 1 :
Comparison of Stella and PVD base coating
20,000shots
32,000shots
1.6 times longer
Case study 2 :
Comparison of Stella-Nova and PVD base coating
50,000shots
99,000shots
2 times longer
